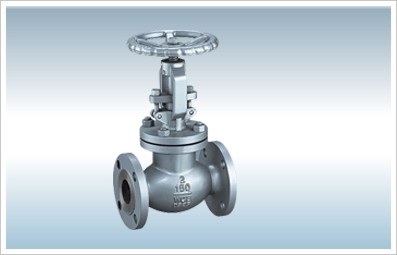

ANSI Standard Cast Steel Flanged Globe Valve in oil & Chemial industry, thermal power station

Products Design Features

ANSI cast steel globe valves are used to cut or connect the pipe media in Class 150~2500 and working temperatures≤600°C, in oil & chemial industry, thermal power station.

Main structural features:

1. The products designs are in accordance with the ANSI B16.34 and BS 1873, with rational structure, reliable seal, excellent performance, and pretty appearance
2. Cabalt base alloy welded sealing surface, anti-wearing, erosion-proof abrasion-proof and longer use life.
3. The surface and the adjusting media of the valve shaft are nitrogenized so that it is erosion and abrasion resistant.
4. The central cavity with pressures rating Class≥1500 adopts self-tightening sealing structure, which means that the sealing will rise with the internal pressure, and the sealing is highly reliable. There is back seat structure in the valve, so the sealing is reliable.
5. There is back seat structure in the valve, so the sealing is reliable.
6. The material of the parts and the flange sizes can be chose and matched according to the applications and the requirements of the users. That can satisfies all kinds of working requirements.

Technical Specifications:

• Design & Manufacture standard: API 600, API 6D, BS1873
• Pressure & Temperature standard: ASME B16.34
• Face to face dimension standard: ASME B16.10
• Flange standard: ASME B16.5, ASME B16.47
• Test & Inspect: API 598

Dimmension:
