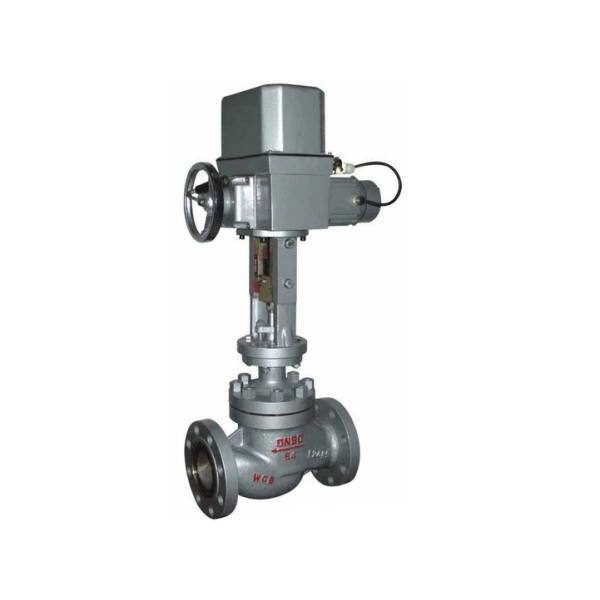

Cast Steel Flanged Globe Valve With Electric Actuator DIN Standard PN16

Description:

Cast Steel flange globe valve are highly efficient for services requiring frequent operation and throttling when pressure drop across the valve is about 20% of inlet pressure. Closer throttling, creating higher pressure drops may cavitation or excessive velocities which could cause high noise levels, vibration and possible damage to the valve or adjacent piping. Globe valve can be equipped with optional operators and are avaliable with a variety of trims to match service requirements.

1 . Body: Body is cast with heavy section reinforced at points subjected to the greatest stress. Valves are available in both flanged and butt welding ends. All conform to ANSI specifications.

2 . Stem: Stem has long engagement with yoke bushing for accurate seating.

3 . Dsic stem Nut: Disc stem ring connects the disc to the stem, permitting the disc to swivel and aid in securing tight seating for trouble-free service.

4 . Gland: Gland is Two piece, ball type which exerts even pressure on the packing without binding the stem.

5 . Bonnet Gasket: Bonnet gasket provides a positive seal against leakage. Class150 and 300 valves have a male/female bonnet joint. A ring-type gasket is employed in class600.

Technical Specifications:

• Design & Manufacture standard: DIN3352
• Pressure & Temperature standard: ASME B16.34
• Face to face dimension standard: DIN 3352-F4,F5,F7
• Flange standard: DIN2543, DIN2544, DIN2545,DIN2546
• Test & Inspect: DIN3230

Material

Dimmension:

 ZHEJLANG TEYL VALVE CO.,LTD.was founded in 1988,with many years of history In valve production,We specialize in scientific research,designing manufacturing,sales and service.The company IS located in Longwan District which has been regarded as “China Valves City”and“China Stainless Steel Production Base”.This district has unique regional advantage and the factory area is close to airport and Long wan international container wharf, It is near Dongtou in the east and is not farfrom railway station in the south.Yandang Mountain is easy of access,with charming scenery.

  There are currently more than 230 employees and 40 engineering technicians,including 10 senior engineers.By introducing international advanced management pattern and attracting technical elites of valve industry,the company has had large scale Intensive production capacity after twenty years of development. Many workshops of welding mechanical processing assembly and paint-spraying are set up in the company,There are processing centre.numerical control machine tool,plasma resurfacing welding as well as over 200 set of varous valve processing machine equipments.

   Main products include: gate valve globe valve ball valve check valve butterfly valve hydraulic control valve ANSI valve,sanitary level valve and pipe fitting,which have more than 30 varieties,with over 130 series and thousands of models and seproducts are designed and manufactured according to domestic and overseas standards such as ISO、API、ANSI、BS、DIN、JIS、GB、JB and so on They are widely applied to the in dustries like petroleum,chemical engineering,metallurgy,pharmacy,food,electric power,supply and discharge of water and so on.All products have been sold far to large and medium sized enterprises at home.The company IS dedicated to exploring international markets to have currently exported millions of sets of valves,which are sold abroad to more than ten countries and regions in Middle East,Southeast Asia Europe and America,enjoying good reputation among numerous customers.

 Both domestic and overseas advanced production technology are absorbed by our company toseek for continuous innovation and greater perfection of products from design,development performance detection,material selection,processing to assembly so as to ensure that appearance,performance and economy of products can meet clients demands. u in the east and is not farfrom railway station in the south.Yandang Mountain is easy of access,with charming scenery.

  Specialization and high quality are the modes of business operation of our company.It is our service mode to be considerate of customers from the angle of details,In today's increasingly competitiv e market .we persistently adhere to the operation objective of seeking for development on quality,benefity,on management,market on credit and strive forfostering “Teyi” brand.We sincerely welcome friends from all walks of life to visit us for business talks to make common progress hand in hand!
